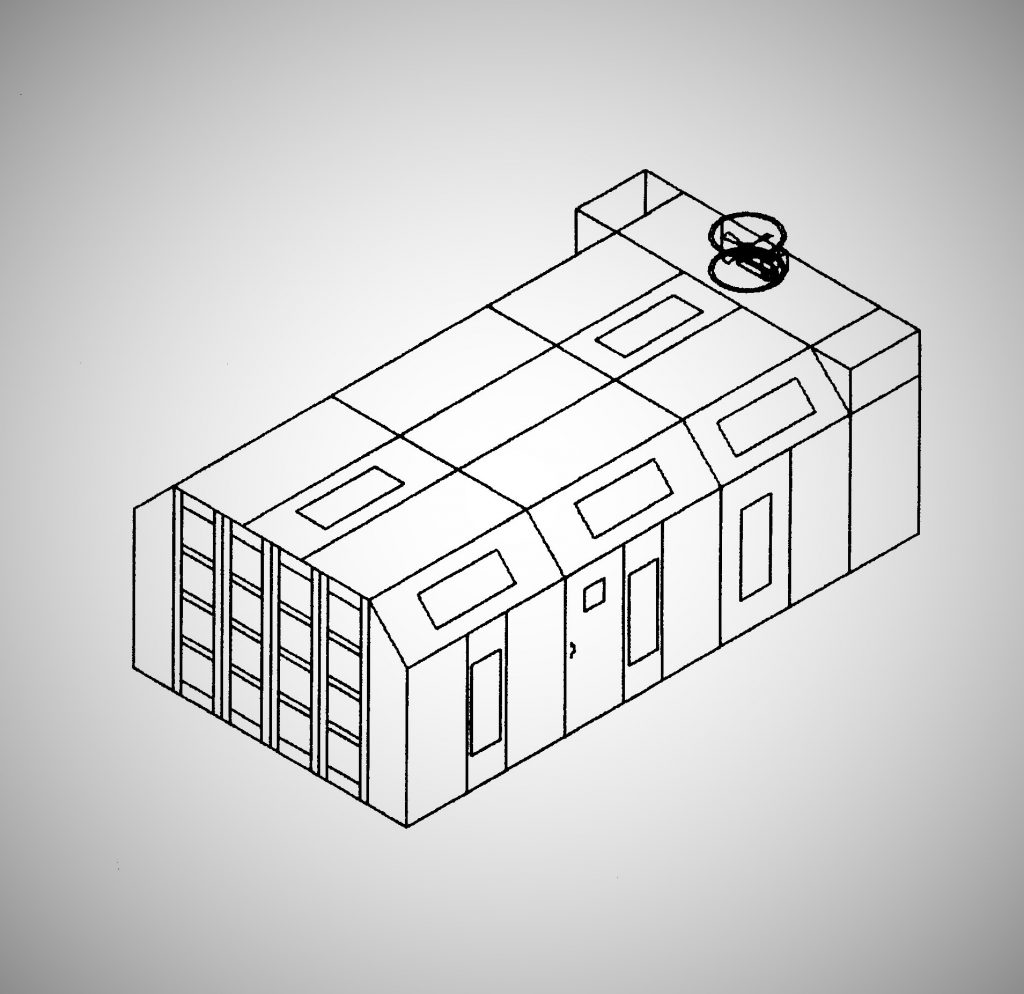

BOOTH//CROSSDRAFT (AUTOMOTIVE)

Large-capacity booth.

Recommended for heavy vehicles and refinishing of furniture or other.

Practical informations

With air make-up unit

Specifications

  • Satin-finish steel panel, 18 gauge, light grey paint
  • Axial helical (free air) fan in flameproof aluminum
  • 1800 RPM TEFC motor (without starter box)
  • Power supply: 230 V, 460 V, 575 V (single phase or 3-phase)
  • Air filtration wall with fiberglass filters at the air outlet, with support grids and two evacuation columns
  • 4’ x 4’ T5HO Universal 54 W tube lighting, with interior service, anti-explosive glass
  • Service door (30” × 84”) with observation window (16” × 16”)
  • Set of folding doors, with filters
  • Set of support beams to stabilize the structure
  • BRIXON safety latches on all doors
  • Drain pipes in galvanized steel, 22 gauge, with 48-inch sections, high-velocity cone with backdraft damper and roof flashing
  • Two, high-efficiency air inlets, with filters
  • Direct fired make-up air heater

Options

  • Natural gas or propane—your choice

Not included

Electrical connections, gas connections, wall and roof openings, sprinkler systems, cranes and aerial platforms (if necessary) and fluorescent tubes for lighting fixtures.
